Stress Test

06 Jun 2022 10012 views 0 minutes to read Contributors

Doing a stress test on your SQL Server DATA, LOG and TEMPDB drives is a wise thing to do. This way you gain knowledge about the maximum I/O capacity.

In case you need to troubleshoot your SQL Server's I/O throughput this will help you. I mean, if you can compare the running numbers with the maximum throughput, you will know if you have reached your maximum or not.


The stress test consist of a series of tests with the sqlio.exe program. We have encapsulated the program (SQLIO.EXE) together with several .CMD files and a README.TXT into a zip file. You can download it here.

* SQLTreeo (c) 1998 till current date
* RUNSQLIO_data.cmd
* RUNSQLIO_log.cmd
* RUNSQLIO_tempdb.cmd

Each of the RUNSQLIO cmd's will perform a series of tests on a specific drive (-d[driveletter] )
RUNSQLIO_data.cmd is currently configured to run on -dI
RUNSQLIO_log.cmd is currently configured to run on -dT
RUNSQLIO_tempdb.cmd is currently configured to run on -dX

you should run RUNSQLIO.CMD (it will execute all the above scripts)

  • If you have different drives, then change that parameter in the file.
  • The output for each cmd will go to a sqlioresults txt file. If you feel the need to change that filename, you are free to do so.
  • Ignore the first error (if any) that comes out during execution.
  • Make sure the user account has write permissions in the root of the drives.
  • If you feel the need to start over, delete the result file(s) first
  • After stress tests send the files to
  • If you have any questions, send a mail to

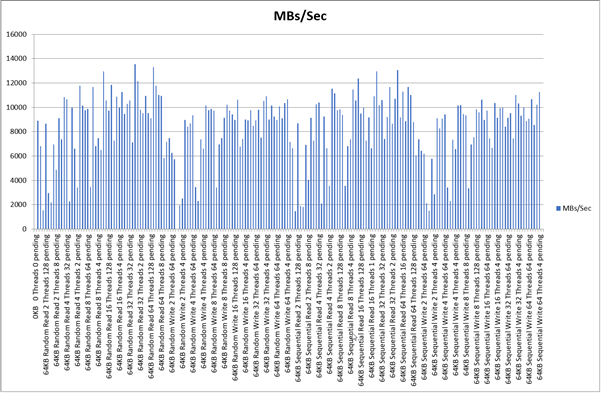

After the stresstest files have been received, you will receive the analysis back that will show you the MB and IOPS capacity:
